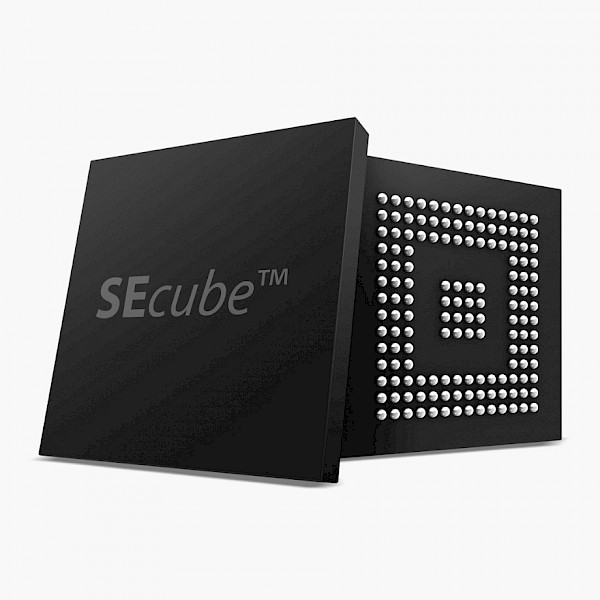

SEcube™ Chip

Secure environment running the code to operate and protect your most critical assets.

Single Chip featuring:

Product specifications

  • STM32F4 - ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART AcceleratorTM) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions - FLASH 2 MB - RAM 256 KB
  • Security Controller SLJ52G - JavaCard Platform, including ePassport and eSign applets
  • Supported standards: JC 3.0, GP 2.2, ICAO BAC, SAC, AA, BSI-TR03110 v1.11 EAC, ISO 18013 BAP, EAP config 1-4 - 128 Kbyte EEPROM - DES, 3DES, AES up to 256-bit - RSA up to 2048-bit, ECC up to 521-bit
  • Certified Common Criteria CC EAL5+ high
  • FPGA - MachXO2-7000 - 6864 LUTs - Ultra Low Power Device (65 nm process, 19 μW standby power, programmable low swing differential I/Os, Stand-by mode and other power saving options)
  • Embedded and distributed memory
    • 240 Kbits SysMEMTM embedded blocks RAM
    • 54 Kbits distributed RAM
    • Dedicated FIFO control logic
  • 256 Kbits On-Chip User Flash Memory
  • Wide Frequency range (10 MHz to 400 MHz)
  • Non-Volatile infinitely reconfigurable
  • In-field logic configuration while system operates
  • Interfaces: USB 2.0 (high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI), 47 FPGA I/Os
